Product details

Working temperature:-20-+65℃

Working humidity:10%-90%RH

Panel power supply :5V

Screen power supply :AC220V—AC250V

Maximum power each Module:22W

Max power:330W/ M2

Average power:110W/ M2

Driving device: Constant current drive

Scanning mode:1Scan

Protection level : IP65

Led Lamp flatness: 1mm

Brightness/M2 : 8000cd

Service life:100000Hours

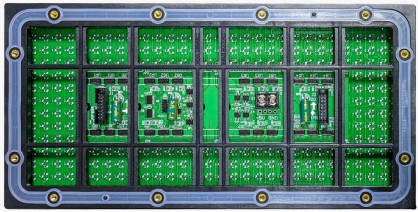

LED outdoor DIP light display, is energy-saving board diagram design, light beads evenly separated. Low current, low power consumption, high brightness, strong penetration (strong viewing distance), long service life, stable performance, small light decay.The PCB and led of the DIP led display can be packaged together, so as to prevent it from being damaged by water and other objects, with high brightness and long life, so this type of display is often used outdoors. Outdoor PH10 is a relatively cost-effective product.If your installation environment is more stringent, requiring 8000-10000 brightness and 8-10 years warranty installation requirements, you can choose this led display.
