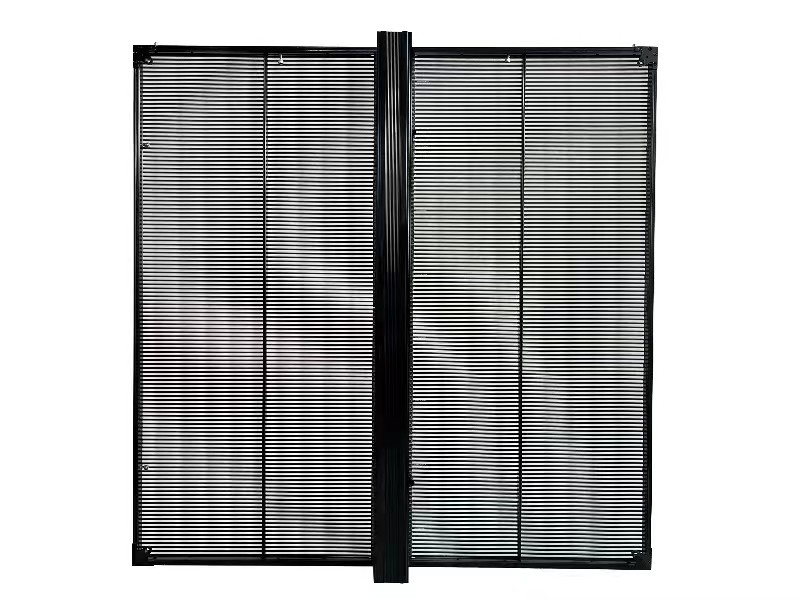

Product details
1.Ultra-light, highly transparent, 75% transparency
2. Lightweight design, weighing only 12KG per square meter
3. Low power consumption, average power consumption less than 100W
4. High and low temperature resistance -40℃ - +60℃
5. Easy to maintain, easy to achieve fast maintenance front/back
6. Frame-type cabinet assembly, seamless splicing, efficient and convenient
7. Widely used in glass wall curtains, large shopping malls, large entertainment programs, TV evening parties, etc.
Main Description:
The advantages of LED transparent screens mainly include high transparency, light and portable, energy-saving and environmentally friendly, high definition and high refresh rate.
1. High transparency: The biggest feature of LED transparent screens is its high transparency, which allows light to pass through the screen, so that the background can be displayed through the screen, and will not completely block the scenery or buildings behind, which enhances the product's publicity effect
2. Light and portable: Compared with traditional large LED display screens, transparent screens are usually thinner and lighter, easier to install and maintain, and more flexible to adapt to various installation environments. This feature makes installation and transportation more convenient, while also reducing the use of space, which is more in line with modern people's requirements for space utilization
3. Energy saving and environmental protection: Energy-saving LED lamp beads are used, which have lower energy consumption, and can achieve higher energy s
aving effects by adjusting the brightness and display content. In addition, the energy-saving and environmentally friendly characteristics of LED transparent screens make the display industry more in line with environmental protection requirements, while also reducing energy consumption and meeting the requirements of sustainable development. High definition and high refresh rate: The high definition and high refresh rate of LED transparent screens make the displayed images more delicate and realistic, and the dynamic images more smooth and natural, which enhances the product's publicity effect and allows the audience to see the details and characteristics of the products clearly, improving the display effect. These advantages make LED transparent screens widely used in exhibitions, commercial advertisements and other fields, adding a sense of modernity and technology to buildings or exhibition spaces, and attracting more attention.
Model Number | 3.91-7.8 | 3.91-7.8 | 3.91-7.8 | 2.6-6.9 | 2.6-6.9 | 10.42-10.42 | 15.6-15.6 |
LED Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
Brightness | 800cd/m2 | 2500cd/m2 | 4500cd/m2 | 1000cd/m2 | 4000cd/m2 | 5500cd/m2 | 5500cd/m2 |
PixelDensity | 32768dot/m2 | 32768dot/m2 | 32768dot/m2 | 55296dot/m2 | 55296dot/m2 | 9216dot/m2 | 4096dot/m2 |
Transparency | 75% | 75% | 75% | 75% | 75% | 75% | 75% |
Cabinet Size | 1000*1000*70mm | 1000*1000*70mm | 1000*1000*70mm | 1000*1000*70mm | 1000*1000*70mm | 1000*1000*70mm | 1000*1000*70mm |
Cabinet Resolution | 256*128dot | 256*128dot | 256*128dot | 384*144dot | 384*144dot | 96*96dot | 64*64dot |
Module Size | 500*125mm | 500*125mm | 500*125mm | 500*125mm | 500*125mm | 500*125mm | 500*125mm |
Module Resolution | 128*16dot | 128*16dot | 128*16dot | 192*18dot | 192*18dot | 148*12dot | 32*8dot |
Cabinet Weight | ≤8Kg/m2 | ≤8Kg/m2 | ≤8Kg/m2 | ≤8Kg/m2 | ≤8Kg/m2 | ≤8Kg/m2 | ≤8Kg/m2 |
IP Rating( front/back) | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 |
Environment | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
Viewing Angle (H/V) | 120 °/ 120° | 120 °/ 120° | 120 °/ 120° | 120 °/ 120° | 120 °/ 120° | 120 °/ 120° | 120 °/ 120° |
Viewing Distance | >3m | >3m | >3m | >3m | >3m | >3m | >3m |
Gray Scale | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
Max.Power Consumption | 400W/㎡ | 400W/㎡ | 400W/㎡ | 400W/㎡ | 400W/㎡ | 400W/㎡ | 400W/㎡ |
Ave.Power Consumption | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ |
Scanning Mode | 16S | 16S | 8S | 14S | 14S | 2S | 2S |
Refresh Rate | 3840HZ |
Input Power Voltage | AC100~240V,50160Hz |
Control Mode | Synchronous display with control PC by DVl |
Input Signal | Composite,S-Vido,Component,VGA,DVI,HDMI,HD SDI |
Operating Temperature | 40℃~50℃(work),-40℃~60℃(store) |
Operating Humidity | 35%~85%(work),10%~90%(store) |
Operating Lifetime | ≥100,000hours |
Cabinet Material | Aluminium die casting |
Installation Type | Hanging/Fixed |
Packaging | WVooden box |
